25G Multi-Mode Mini SFF
25Gbps, Multi-Mode 850nm, 100m, Mini SFF

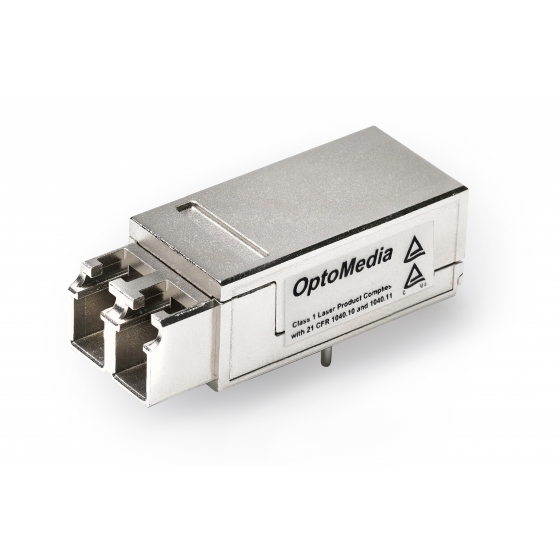

The 25G multimode optical transceiver is a compact 1 × 11 module equipped with an LC connector. It is a low-power, high-performance solution designed for applications such as 25 Gigabit Ethernet and InfiniBand SANs.
The transmitter incorporates an 850 nm vertical-cavity surface-emitting laser (VCSEL). A built-in EEPROM stores detailed product information and can be accessed by the host system through a two-wire serial CMOS interface.
The transceiver complies with applicable 25 Gigabit Ethernet and Fibre Channel standards. It is classified as a Class 1 laser product and meets the requirements of EN/UL 62368.
The transmitter incorporates an 850 nm vertical-cavity surface-emitting laser (VCSEL). A built-in EEPROM stores detailed product information and can be accessed by the host system through a two-wire serial CMOS interface.
The transceiver complies with applicable 25 Gigabit Ethernet and Fibre Channel standards. It is classified as a Class 1 laser product and meets the requirements of EN/UL 62368.
MENU
Overview
The 25G multimode optical transceiver is a compact 1 × 11 module equipped with an LC connector. It is a low-power, high-performance solution designed for applications such as 25 Gigabit Ethernet and InfiniBand SANs.
The transmitter incorporates an 850 nm vertical-cavity surface-emitting laser (VCSEL). A built-in EEPROM stores detailed product information and can be accessed by the host system through a two-wire serial CMOS interface.
The transceiver complies with applicable 25 Gigabit Ethernet and Fibre Channel standards. It is classified as a Class 1 laser product and meets the requirements of EN/UL 62368.
Features
- 1x11 Pin Type
- Duplex LC connector
- Wavelength：850nm
- Transmission distance：100m link distance over MMF (50/125μm OM4)
- Operation Temperature: 0℃ ~ +70℃ / -40℃ ~ +85℃
- Single 3.3V power supply
- Support A0/A2 write protection
- RoHS Compliant
Applications
- Point-to-Point networking
- Compliant InfiniBand SAN
- Compliant 25 Gigabit Ethernet
Ordering Information
| Part Number | Operating Temperature | Distance |
|---|---|---|
| MTK-M3-4D13K | 0℃ ~ 70℃ | up to 100m |
| MTK-M3-4D13L | -40℃ ~ 85℃ | up to 100m |
For any additional requirements, please contact info@opto-media.com.
