Bi-Directional

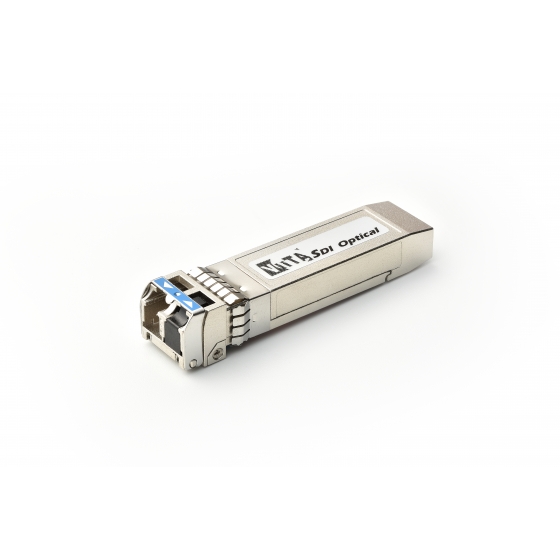

OptoMedia 3G-SDI optical bi-directional transceiver enables two-way communication over only 1-core optic fiber. It supports multi-rate transmission from SDI electrical signal at SMPTE 259M, SMPTE 292M to SMPTE 424M. It supports data rate 3Gbps and error-free under pathological test.
MENU
Overview
OptoMedia 3G-SDI optical bi-directional transceiver enables two-way communication over only 1-core optic fiber. It supports multi-rate transmission from SDI electrical signal at SMPTE 259M, SMPTE 292M to SMPTE 424M. It supports data rate 3Gbps and error-free under pathological test.
Features
- 1-port LC for 2-way transmission in 1 SFP package
- Support transmission of SMPTE 424M, SMPTE 292M, SMPTE 259M, DVB-ASI
- Handles pathological patterns for 3G-SDI, HD-SDI and SD-SDI
- Digital diagnostics function
- 10km over single mode fiber
- Low power consumption- Typical 200 mA
- MSA pinout
- LC and SC of connectors to choose from
specifications
| Parameter | Min | Typ | Max |
|---|---|---|---|
| RM3-S3-4103K-BA Wavelength (nm) | TX 1310 / RX 1550 | ||
| RM3-S3-4103K-BD Wavelength (nm) | TX 1550 / RX 1310 | ||
| Operating case temperature range (℃) | 0 | 70 | |
| Storage temperature range(℃) | -40 | 85 | |
| Power supply voltage (V) | 3.1 | 3.3 | 3.5 |
| Power consumption (mA) | 200 | 300 | |
For any additional requirements, please contact info@opto-media.com.
Ordering Information
For any additional requirements, please contact info@opto-media.com.
