Transceiver

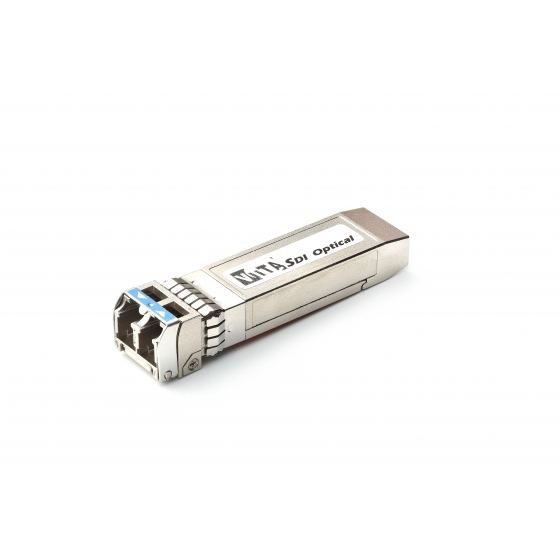

OptoMedia 3G-SDI optical transceiver SFP perfectly converts SDI electrical signals at SMPTE 424M,SMPTE 292M, SMPTE 259M and DVB-ASI to optical signal. It supports data rate 2.97Gbps and handles pathological patterns.
MENU
Overview
OptoMedia 3G-SDI optical transceiver SFP perfectly converts SDI electrical signals at SMPTE 424M,SMPTE 292M, SMPTE 259M and DVB-ASI to optical signal. It supports data rate 2.97Gbps and handles pathological patterns.
Features
- Support transmission of SMPTE 424M, SMPTE 292M, SMPTE 259M, DVB-ASI
- Handles pathological patterns for 3G-SDI, HD-SDI and SD-SDI
- Digital diagnostics function
- 20km over single mode fiber
- Low power consumption- Typical 200 mA
- Available in MSA and Non-MSA pinouts
- Dual LC connector
- 18ch CWDM wavelengths in option (1270~1610nm, 40 & 80km)
specifications
| Parameter | Min | Typ | Max |
|---|---|---|---|
| Wavelength (nm) | 1260 | 1310 | 1360 |
| Operating case temperature range (℃) | -25 | 85 | |
| Storage temperature range(℃) | -40 | 85 | |
| Power supply voltage (V) | 3.1 | 3.3 | 3.5 |
| Power consumption (mA) | 200 | 300 |
For any additional requirements, please contact info@opto-media.com.
Ordering Information
For any additional requirements, please contact info@opto-media.com.
