Dual Transmitter

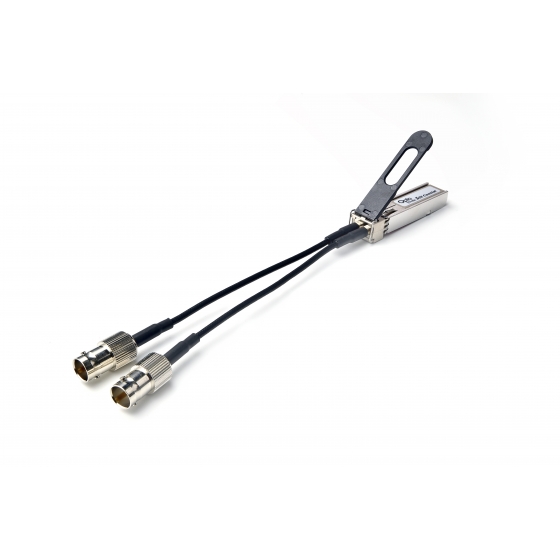

OptoMedia 3G-SDI electrical dual transmitter SFP perfectly transmits SDI electrical signals up to ST-424 (3G), ST-292 (HD), and ST-259 (SD) and DVB-ASI over Belden 1694A cable via BNC, HD-BNC or DIN 1 .0/2.3 connector. It handles 3Gbps pathological patterns.
MENU
Overview
OptoMedia 3G-SDI electrical dual transmitter SFP perfectly transmits SDI electrical signals up to ST-424 (3G), ST-292 (HD), and ST-259 (SD) and DVB-ASI over Belden 1694A cable via BNC, HD-BNC or DIN 1 .0/2.3 connector. It handles 3Gbps pathological patterns.
Features
- Supports ST-424, ST-292 and ST-259
- BNC, HD-BNC or DIN 1.0/2.3 75Ω connectors
- Compatible With DVB-ASI and AES10 (MADI)
- Supports pathological patterns for 3G-SDI, HD-SDI and SD-SDI
- Monitor function via serial interface
- Available in MSA and Non-MSA pinouts
specifications
| Parameter | Min | Typ | Max |
|---|---|---|---|
| Operating case temperature range (℃) | 0 | 70 | |
| Storage temperature range(℃) | -40 | 85 | |
| ESD rating (HBM) | +/-5.5KV | +/-6KV | |
| Power supply voltage (V) | 3.13 | 3.3 | 3.465 |
| Power consumption (mA) | 165 | 220 |
For any additional requirements, please contact info@opto-media.com.
