1.25G Multi-Mode 1310nm

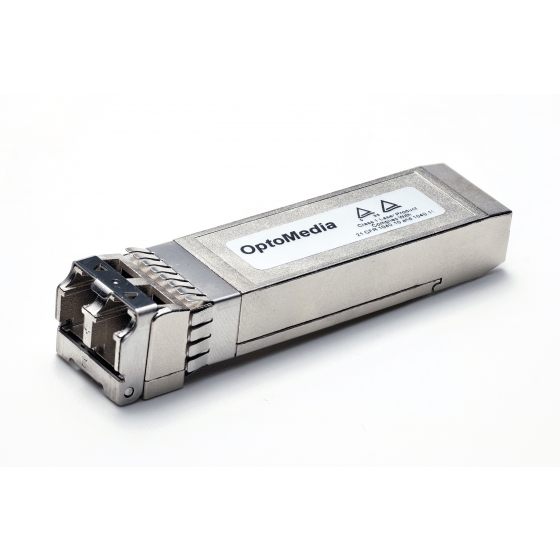

1.25Gbps, Multi-Mode 1310nm, 2km
The PT4-M4-4023x of Small Form Factor Pluggable (SFP) transceiver module is specifically designed for high performance integrated duplex data link over multi mode optical fiber. The high-speed oxide VCSEL and photo diode are provided as a light source and a detector, respectively. An EEPROM contained the detailed product information for the host equipment is accessed by the 2-wire serial CMOS EEPROM protocol.
MENU
Overview
The PT4-M4-4023x of Small Form Factor Pluggable (SFP) transceiver module is specifically designed for high performance integrated duplex data link over multi mode optical fiber. The high-speed oxide VCSEL and photo diode are provided as a light source and a detector, respectively. An EEPROM contained the detailed product information for the host equipment is accessed by the 2-wire serial CMOS EEPROM protocol.
Features
- Dual Fiber Transceiver
- Small Form Factor Pluggable (SFP)
- Connector:LC
- Data Rate:1.25Gbps
- Wavelength:Multi-Mode (1310nm)
- 3.3V single power supply
- Distance up to 2km
- Operating Temperature:-40℃ ~ 85℃ or -40℃ ~ 95℃
- Low EMI
- Low Power Dissipation
- Digital Diagnostic SFF 8472 Compliant
- RoHS compliant
Applicatoins
- Metro Access Rings
- Point-to-Point networking
- 1G Fiber Channel
- Gigabit Ethernet
- Suitable for Fast Ethernet and OC-12
Ordering Information
Part Number | Operating Temperature |
---|---|
PT4-M4-4023L | -40℃ ~ 85℃ |
PT4-M4-4023S | -40℃ ~ 95℃ |
** Please feel free to contact info@opto-media.com if any other requirements.
