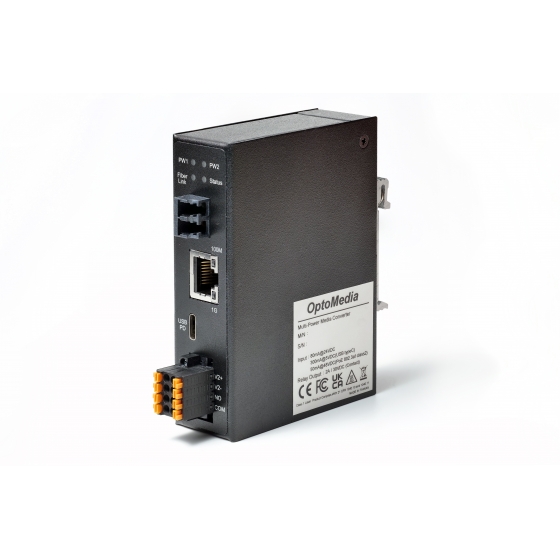

1G Multi-Power Fiber Media Converter

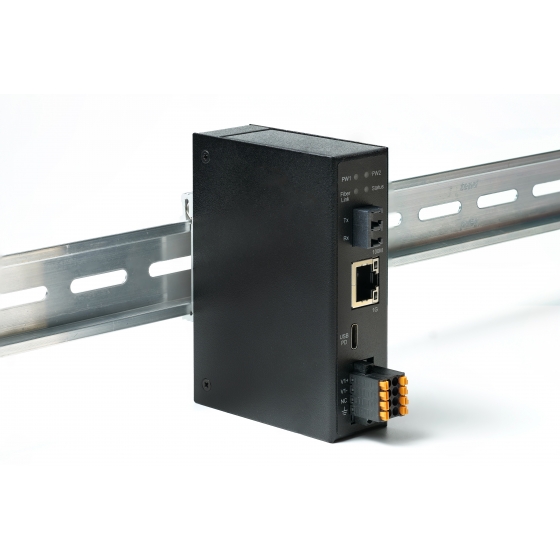

The CU4-xx-4x59Y series, which can be used as standalone or DIN-rail design, is specifically designed for electrical power substation (IEC 61000-4-5). It provides three power supply inputs, including industrial power, PoE, and USB Type-C, realizing the benefit of one device for various environments. A redundant power supply system is also implemented within the unit to enhance usability.

Additionally, the smart, plug-and-play LC duplex connector media converter offers Precision Time Protocol (PTP) transparent clock functionality according to IEEE 1588v2, ensuring time synchronization. It delivers a high level of immunity and flexibility for industrial applications by converting RJ45 Ethernet to fiber optics. The RJ45 port features an auto-crossing function, eliminating the need to differentiate between 1:1 and crossover cables

Overview

Additionally, the smart, plug-and-play LC duplex connector media converter offers Precision Time Protocol (PTP) transparent clock functionality according to IEEE 1588v2, ensuring time synchronization. It delivers a high level of immunity and flexibility for industrial applications by converting RJ45 Ethernet to fiber optics. The RJ45 port features an auto-crossing function, eliminating the need to differentiate between 1:1 and crossover cables.

User Manual v1.0

Features

Support Ethernet constant rate transmission

100Base-Tx to 100Base-FX

1000Base-T to 1000Base-LX/SX

Connector: LC duplex
Wavelength and Distance:

CU4-S1-4159Y 1310nm up to 10km

CU4-M3-4A59Y 850nm up to 550m

Operating Temperature: -40℃~70℃
Auto crossing simplifies cabling (MDI/MDIX)
Link Fault Pass-Through (LFPT) supported
Support redundant multi-power inputs:

Industrial Power Jack: 24V DC

Power over Ethernet (PoE): IEEE 802.3af

USB type C: 5V DC

Individual LEDs indicate power and communication status
TUV/cTUVus/CE/FCC compliant
RoHS and REACH Compliant

Applications

Connectivity for long distance and immunity to interference with high security
Control Center, Server Room, Office, Surveillance, Smart Building, Factory, Signaling System, Digital Signage and Car Parking System, Government, Telecommunication, Media, Medical, Security, Education and Enterprise
