8-RM3(C)-S3(S4)-4103K-B(BA,BD)
8-RM3(C)-S3(S4)-4103K-B(BA,BD)

Bi-Directional

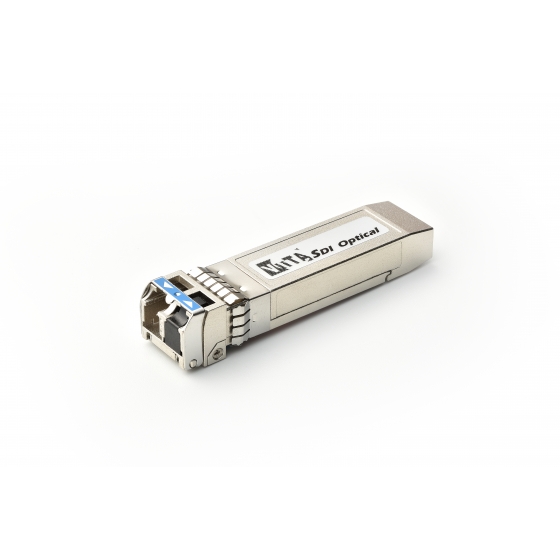

OptoMedia 12G-SDI optical bi-directional transceiver enables two-way communication over only 1-core optic fiber. It supports multi-rate transmission from SDI electrical signal at SMPTE 2082, SMPTE 424M, SMPTE 292M. It supports data rate 11.88Gbps and handles pathological patterns.

MENU

Overview

OptoMedia 12G-SDI optical bi-directional transceiver enables two-way communication over only 1-core optic fiber. It supports multi-rate transmission from SDI electrical signal at SMPTE 2082, SMPTE 424M, SMPTE 292M. It supports data rate 11.88Gbps and handles pathological patterns.



Features

  • 1-port LC for 2-way transmission in 1 SFP package
  • Support transmission of SMPTE 2082, SMPTE 424M, SMPTE 292M
  • Handles pathological patterns for 12G-SDI, 6G-SDI, 3G-SDI and HD-SDI
  • Digital diagnostics function
  • 10km over single mode fiber
  • Low power consumption- Typical 300 mA
  • MSA pinout
  • LC connector

specifications

Parameter   Min      Typ      Max
RMC-S3-4103K-BA Wavelength (nm)TX 1270 / RX 1330
RMC-S3-4103K-BD Wavelength (nm)TX 1330 / RX 1270
Operating case temperature range (℃)0 70
Storage temperature range(℃)-40 85
Power supply voltage (V)3.13.33.5
Power consumption (mA) 300400

For any additional requirements, please feel free to contact info@opto-media.com.

Ordering Information

For any additional requirements, please feel free to contact info@opto-media.com.
