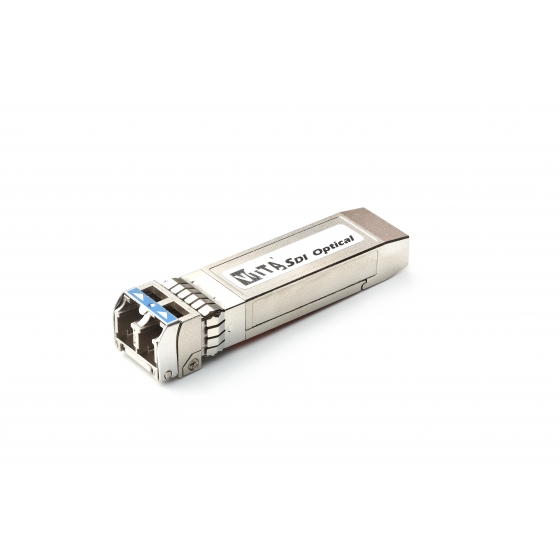

Dual Receiver
OptoMedia 12G-SDI dual channel optical fiber receiver perfectly converts from 2 optical signals to 2 SDI electrical signal at SMPTE 2082, SMPTE 424M, SMPTE 292M, SMPTE 259M and DVB-ASI. It supports data rate 11.88Gbps and handles athological patterns.
MENU
Overview
OptoMedia 12G-SDI dual channel optical fiber receiver perfectly converts from 2 optical signals to 2 SDI electrical signal at SMPTE 2082, SMPTE 424M, SMPTE 292M, SMPTE 259M and DVB-ASI. It supports data rate 11.88Gbps and handles athological patterns.
Features
- Support transmission of SMPTE 2082, SMPTE 424M, SMPTE 292M, SMPTE 259M, DVB-ASI
- Handles pathological patterns for 12G-SDI, 6G-SDI, 3G-SDI, HD-SDI, SD-SDI
- Digital diagnostics function
- 10km over single mode fiber
- Low power consumption- Typical 100 mA
- Available in MSA and Non-MSA pinouts
- Dual LC connector
- Integrated Reclocker
specifications
Parameter | Min | Typ | Max |
---|---|---|---|
Wavelength (nm) | 1260 | 1620 | |
Operating case temperature range (℃) | 0 | 70 | |
Storage temperature range(℃) | -40 | 85 | |
Power supply voltage (V) | 3.1 | 3.3 | 3.5 |
Power consumption (mA) | 180 | 200 |
**If you have any other requirements, please feel free to contact us at info@opto-media.com.
Ordering Information
Part Number | Pin out | Type | Distance (km) | Wavelength (nm) | Connector | Operating case temperature |
---|---|---|---|---|---|---|
RMC-S1-4103K-G | MSA | 2-port RX | 10 | LC | 0°C ~ +70°C | |
VPC-S1-4103K-G | non-MSA | 2-port RX | 10 | LC | 0°C ~ +70°C |
**If you have any other requirements, please feel free to contact us at info@opto-media.com.
