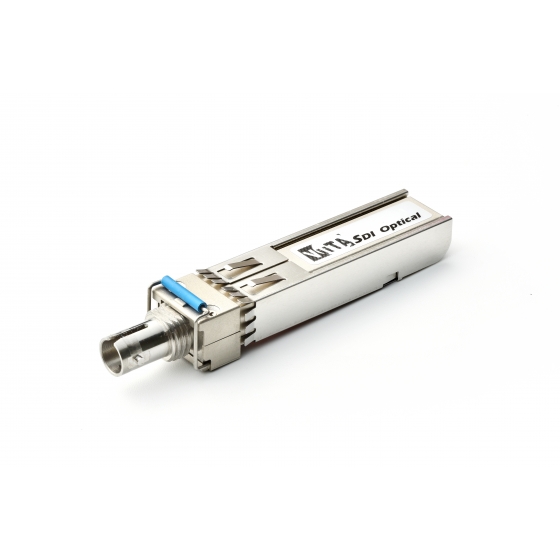

Single Receiver | ST

OptoMedia 12G-SDI optical fiber receiver perfectly converts from optical signals to SDI electrical signal at SMPTE 2082, SMPTE 424M, SMPTE 292M, SMPTE 259M and DVB-ASI. It supports data rate 11.88Gbps and handles pathological patterns.

MENU

Overview

OptoMedia 12G-SDI optical fiber receiver perfectly converts from optical signals to SDI electrical signal at SMPTE 2082, SMPTE 424M, SMPTE 292M, SMPTE 259M and DVB-ASI. It supports data rate 11.88Gbps and handles pathological patterns.

Features

  • Support transmission of SMPTE 2082, SMPTE 424M, SMPTE 292M, SMPTE 259M, DVB-ASI
  • Handles pathological patterns for 12G-SDI, 6G-SDI, 3G-SDI, HD-SDI, SD-SDI
  • Digital diagnostics function
  • 10km over single mode fiber
  • Low power consumption- Typical 100 mA
  • Available in MSA and Non-MSA pinouts
  • ST connector
  • Integrated Reclocker

specifications

Parameter   Min      Typ      Max
Wavelength (nm)1260 1620
Operating case temperature range (℃)0 70
Storage temperature range(℃)-40 85
Power supply voltage (V)3.13.33.5
Power consumption (mA) 180200

**If you have any other requirements, please feel free to contact us at info@opto-media.com.

Ordering Information

Part NumberPin outTypeDistance (km)Wavelength (nm)ConnectorOperating case temperature
RMC-S1-3103K-RMSA1-port RX10 ST0°C ~ +70°C
VPC-S1-3103K-Rnon-MSA1-port RX10 ST0°C ~ +70°C

**If you have any other requirements, please feel free to contact us at info@opto-media.com.
