2-RM3(C)-S1-3103K-T(R0)
2-RM3(C)-S1-3103K-T(R0)

Single Transmitter | ST

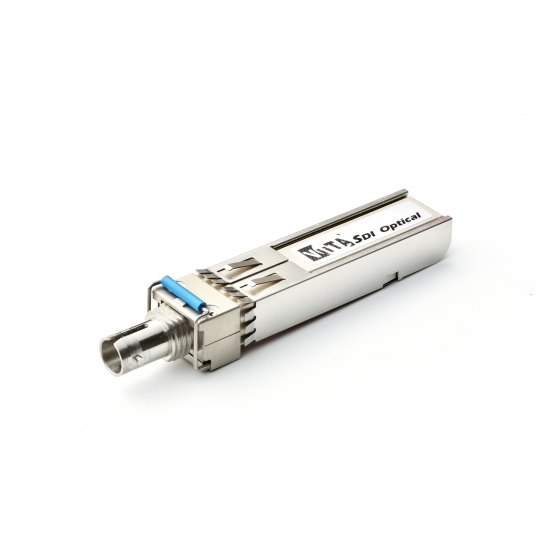

OptoMedia 12G-SDI optical fiber transmitter SFP+ perfectly converts SDI electrical signals at SMPTE 2082, SMPTE 424M, SMPTE 292M, SMPTE 259M and DVB-ASI to optical signal. It supports data rate 11.88Gbps and handles pathological patterns.

MENU

Overview

OptoMedia 12G-SDI optical fiber transmitter SFP+ perfectly converts SDI electrical signals at SMPTE 2082, SMPTE 424M, SMPTE 292M, SMPTE 259M and DVB-ASI to optical signal. It supports data rate 11.88Gbps and handles pathological patterns.

Features

  • Support transmission of SMPTE 2082, SMPTE 424M, SMPTE 292M, SMPTE 259M, DVB-ASI
  • Handles pathological patterns for 12G-SDI, 6G-SDI, 3G-SDI, HD-SDI, SD-SDI
  • Digital diagnostics function
  • 10km over single mode fiber
  • Low power consumption- Typical 135 mA
  • Available in MSA and Non-MSA pinouts
  • ST connector
  • 18ch CWDM wavelengths in option (1270~1610nm)

specifications

Parameter   Min      Typ      Max
Wavelength (nm)126013101360
Operating case temperature range (℃)0 70
Storage temperature range(℃)-40 85
Power supply voltage (V)3.13.33.5
Power consumption (mA) 135150



Ordering Information

Part NumberPin outTypeDistance (km)Wavelength (nm)ConnectorOperating case temperature
RMC-S1-3103K-TMSA1-port TX101310ST0°C ~ +70°C
VPC-S1-3103K-Tnon-MSA1-port TX101310ST0°C ~ +70°C
