4K HDMI KVM Extender
Moreover, CMV-20 transmitter supports HDMI loop-out signals, as well as Local Console operations with optional On-Screen Display (OSD) presentation for Black Screen Mode or View Only Mode at the remote side. It also has LED indicators, reset button and audio extraction from HDMI signals at both transmitter and receiver.
If necessary, CMV-20 can also provide RS-232 pass-through path and operate firmware version check or firmware upgrade locally.
MENU
Overview

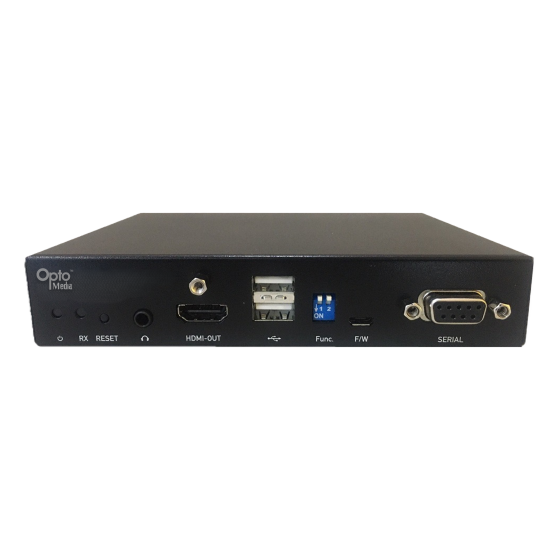

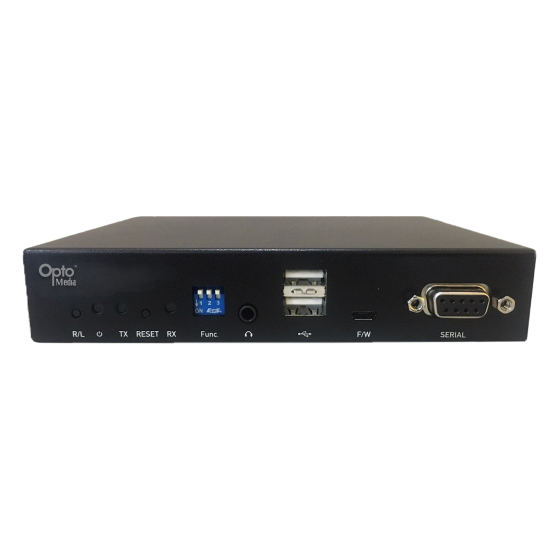

The 4K HDMI KVM Optical Extender CMV-20 is specially designed to extend your video and USB keyboard/mouse transmission up to 10km (6.25miles) over single mode fiber optic cables in Ultra-HD 4K2K@60 format from point to point. Administrators from a remote location can easily access, control, and monitor Ultra-HD sources, such as PCs, servers or other KVM consoles.
Moreover, CMV-20 transmitter supports HDMI loop-out signals, as well as Local Console operations with optional On-Screen Display (OSD) presentation for Black Screen Mode or View Only Mode at the remote side. It also has LED indicators, reset button and audio extraction from HDMI signals at both transmitter and receiver.
If necessary, CMV-20 can also provide RS-232 pass-through path and operate firmware version check or firmware upgrade locally.
Features
- Point-to-Point architecture
- Ultra-low latency and the lightest compression
- Extend 4K HDMI and USB keyboard/mouse signals up to 10km (6.25miles) over single mode fiber
- Support Local Console operations with On-Screen Display (OSD) presentation for Black Screen Mode or View Only Mode at receiver in option
- Local HDMI Loop-Out at transmitter
- Support selection of RS-232 mode or KVM mode
- EDID pass through from HDMI port of receiver in KVM mode or HDMI Loop-Out port of transmitter in Local Console mode
- Audio extraction at both transmitter and receiver
- System firmware update for technical support through Micro-USB port
- Universal Switch-Mode 12V / 1.5A Power Supply
- LED indicators for power, link, and local/remote operation
- Wall mounting housing design for easy and robust installation
Applicatoins
- Secure Point-to-Point KVM for Control Room, Government and Defense projects
Ordering Information
Part Number | SFP Transceiver | Distance |
---|---|---|
CMV-20 | 10G-LR | 10km |
** Please feel free to contact info@opto-media.com if any other requirements.
