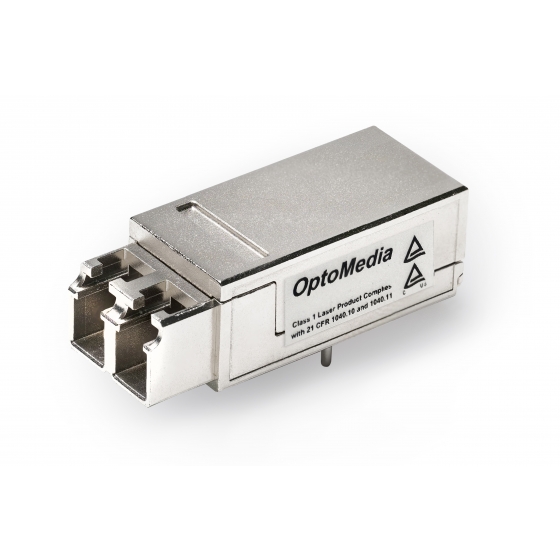

10G CWDM Mini-SFF

10Gbps, Single-Mode, CWDM, Mini-SFF
The MT0-xx-4103K-I single-mode optical transceiver is a 1x12 mini transceiver with LC connectors. This single-mode transceiver is a low-power, high-performance module for 10 Gigabit Ethernet and Fiber Channel communications.

Digital diagnostics monitoring information and detailed product information for the host equipment is accessed by the 2-wire serial CMOS EEPROM protocol.

MENU

Overview

The MT0-xx-4103K-I single-mode optical transceiver is a 1x12 mini transceiver with LC connectors. This single-mode transceiver is a low-power, high-performance module for 10 Gigabit Ethernet and Fiber Channel communications.

Digital diagnostics monitoring information and detailed product information for the host equipment is accessed by the 2-wire serial CMOS EEPROM protocol.

Features

  • 1x12 Pin Package
  • Duplex LC connector
  • CWDM Wavelength
  • Transmission distance up to 10km via Single-Mode fiber
  • Operation Temperature: 0℃ ~ +70℃
  • Single 3.3V power supply
  • AC-coupled differential serial I/O interface
  • Support A0/A2 write protection
  • RoHS Compliant

Applicatoins

  • High-speed Storage Area Networks
  • Point-to-Point networking

Ordering Information

Part NumberCWDM WavelengthDistance
MT0-43-4103K-I1430 nmup to 10km
MT0-45-4103K-I1450 nmup to 10km
MT0-49-4103K-I1490 nmup to 10km

** Please feel free to contact info@opto-media.com if any other requirements.
