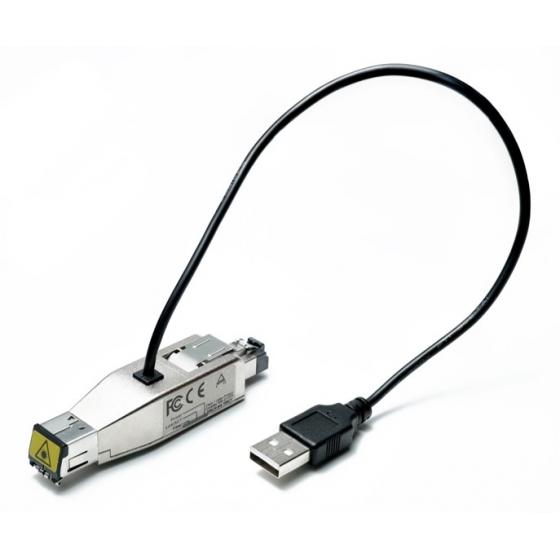

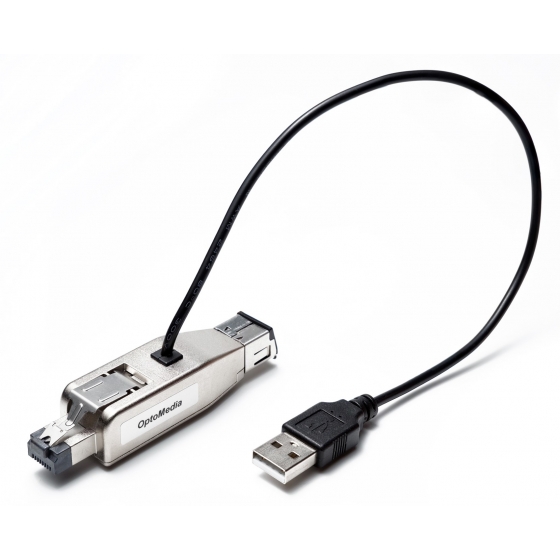

1G RJ45 to Fiber Dongle | Power over USB
1.25Gbps, SM/MM, 1310/850nm, USB
The dongle is specifically designed for electrical power substation (IEC 61000-4-5) and PROFINET / TSN (IEC 61158 and IEC 61784). It provides a high level of immunity to interference and long transmission range (up to 10km) in industrial applications by converting the 1000Mbps Ethernet interface to fiber optics (1000Mbps according to 1000Base-X standard).
The small, plug-and-play converter dongle with LC duplex connector driven by Power over USB provides flexibility to upgrade ETHERNET to FIBER OPTICAL. Its RJ45 port (male type) offers an auto crossing function, which means it is not necessary to make a distinction between 1:1 and crossover cables.
The small, plug-and-play converter dongle with LC duplex connector driven by Power over USB provides flexibility to upgrade ETHERNET to FIBER OPTICAL. Its RJ45 port (male type) offers an auto crossing function, which means it is not necessary to make a distinction between 1:1 and crossover cables.
MENU
Overview
The dongle is specifically designed for electrical power substation (IEC 61000-4-5) and PROFINET / TSN (IEC 61158 and IEC 61784). It provides a high level of immunity to interference and long transmission range (up to 10km) in industrial applications by converting the 1000Mbps Ethernet interface to fiber optics (1000Mbps according to 1000Base-X standard).
The small, plug-and-play converter dongle with LC duplex connector driven by Power over USB provides flexibility to upgrade ETHERNET to FIBER OPTICAL. Its RJ45 port (male type) offers an auto crossing function, which means it is not necessary to make a distinction between 1:1 and crossover cables.
Features
- IEEE 802.3ab 1000BASE-T, IEEE 802.3u 100BASE-TX, IEEE 802.3z 1000BASE-X compliant
- IEC 61000-4-5 (Surge immunity) compliant
- LC (single mode) duplex connection available with wavelength 1310nm
- Operating temperature: -40℃~70℃
- Power input voltage range: 4.5V ~ 5.5V
- Long distance: up to 10km for Single-mode fiber
- Link Fault Pass-Through (LFP) supported
- Both Single-mode and Multi-mode fiber supported
- Power dissipation < 2.5W
- Surge Protection
- Auto crossing simplifies cabling (MDI/MDIX)
- Link Fault Pass-Through (LFP) supported
- Individual LEDs indicate power and communication status
- Auto dust cover
- TUV/cTUVus/CE/FCC compliant
- RoHS and REACH compliant
Applicatoins
- Connectivity for long distance and immunity to interference with high security
- Control Center, Server Room, Office, Surveillance, Smart Building, Factory, Signaling System, Digital Signage and Car Parking System.
- Government, Telecommunication, Media, Medical, Security, Education and Enterprise.
Ordering Information
Part Number | Operating Temperature | Distance |
---|---|---|
CV4-S1-5154Y | -40℃ ~ 70℃ | up to 10km |
CV4-M3-5A54Y | -40℃ ~ 70℃ | up to 500m |
** Please feel free to contact info@opto-media.com if any other requirements.
