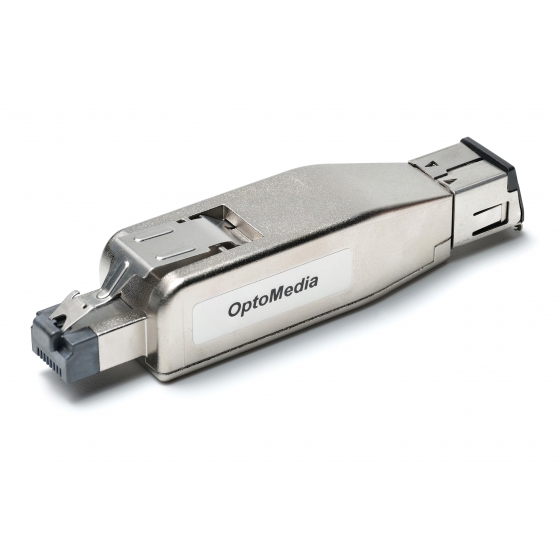

CV4-xx-5x51L正面_白底

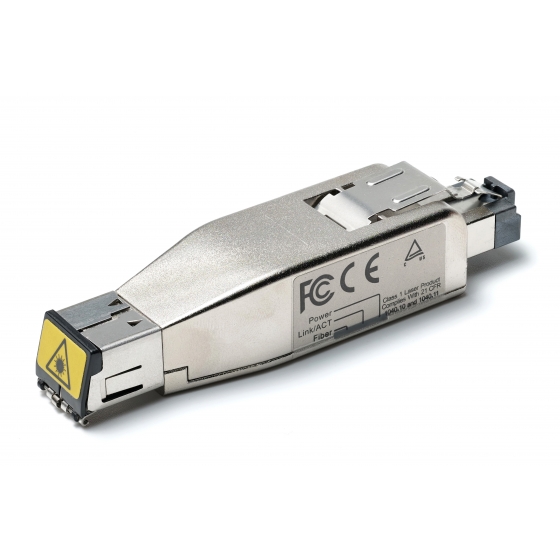

CV4-xx-5x51L反面_白底
CV4-xx-5x51L正面_白底
CV4-xx-5x51L反面_白底

1G RJ45 to Fiber Dongle | Power over Ethernet

1.25Gbps, SM/MM, 1310/850nm, PoE
The converter dongle is specifically designed for electrical power substation (IEC 61000-4-5) and PROFINET / TSN (IEC 61158 and IEC 61784). It provides a high level of immunity to interference and long transmission range (up to 10km) in industrial applications by converting the 1000Mbps Ethernet interface to fiber optics (1000Mbps according to 1000Base-X standard).

The small, plug-and-play converter dongle with LC duplex connector driven by Power over Ethernet (PoE) provides flexibility to upgrade ETHERNET to FIBER OPTICAL. Its RJ45 port (male type) offers an auto crossing function, which means it is not necessary to make a distinction between 1:1 and crossover cables.

MENU

Overview

The converter dongle is specifically designed for electrical power substation (IEC 61000-4-5) and PROFINET / TSN (IEC 61158 and IEC 61784). It provides a high level of immunity to interference and long transmission range (up to 10km) in industrial applications by converting the 1000Mbps Ethernet interface to fiber optics (1000Mbps according to 1000Base-X standard).

The small, plug-and-play converter dongle with LC duplex connector driven by Power over Ethernet (PoE) provides flexibility to upgrade ETHERNET to FIBER OPTICAL. Its RJ45 port (male type) offers an auto crossing function, which means it is not necessary to make a distinction between 1:1 and crossover cables.

Features

  • IEEE 802.3ab 1000BASE-T, IEEE 802.3u 100BASE-TX, IEEE 802.3z 1000BASE-X compliant
  • IEC 61000-4-5 (Surge immunity) compliant
  • LC (single mode) duplex connection available with wavelength 1310nm
  • Data rate: 100/1000Mbps
  • Operating temperature: -40℃~70℃
  • Long distance: up to 10km for Single-mode fiber
  • Both Single-mode and Multi-mode fiber supported
  • Power over Ethernet (PoE) input voltage range: 30~57V
  • Power dissipation < 2.5W
  • Surge Protection
  • Auto crossing simplifies cabling (MDI/MDIX)
  • Link Fault Pass-Through (LFP) supported
  • Individual LEDs indicate power and communication status
  • Auto dust cover
  • TUV/cTUVus/CE/FCC compliant
  • RoHS and REACH compliant

Applicatoins

  • Connectivity for long distance and immunity to interference with high security
  • Control Center, Smart Building, Factory Automation
  • Industry, Utility, Mining and Enterprise

Ordering Information

Part NumberOperating TemperatureDistance
CV4-S1-5151Y-40℃ ~ 70℃up to 10km
CV4-M3-5A51Y-40℃ ~ 70℃up to 500m

** Please feel free to contact info@opto-media.com if any other requirements.
