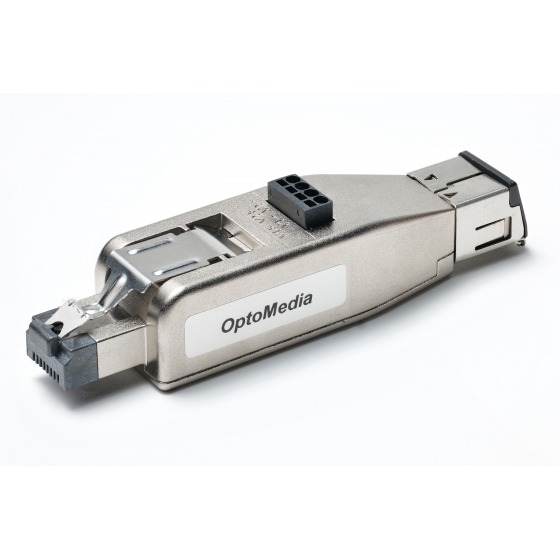

CV4-xx-5x50L正面_白底

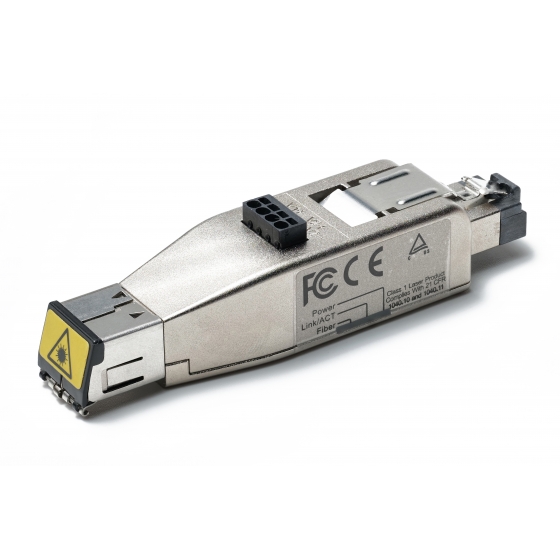

CV4-xx-5x50L反面_白底
CV4-xx-5x50L正面_白底
CV4-xx-5x50L反面_白底

1G RJ45 to Fiber Dongle | Industrial Power

1.25Gbps, SM/MM, 1310/850nm, DC24V
The converter dongle is specifically designed for electrical power substation (IEC 61000-4-5) and PROFINET / TSN (IEC 61158 and IEC 61784). It provides a high level of immunity to interference and long transmission range (up to 10km) in industrial applications by converting the 1000Mbps Ethernet interface to fiber optics (1000Mbps according to 1000Base-X standard).

The small, plug-and-play converter dongle with LC duplex connector provides flexibility to upgrade ETHERNET to FIBER OPTICAL. Its RJ45 port (male type) offers an auto crossing function, which means it is not necessary to make a distinction between 1:1 and crossover cables.

MENU

Overview

The converter dongle is specifically designed for electrical power substation (IEC 61000-4-5) and PROFINET / TSN (IEC 61158 and IEC 61784). It provides a high level of immunity to interference and long transmission range (up to 10km) in industrial applications by converting the 1000Mbps Ethernet interface to fiber optics (1000Mbps according to 1000Base-X standard).

The small, plug-and-play converter dongle with LC duplex connector provides flexibility to upgrade ETHERNET to FIBER OPTICAL. Its RJ45 port (male type) offers an auto crossing function, which means it is not necessary to make a distinction between 1:1 and crossover cables.

Features

  • IEEE 802.3 1000Base-T, IEEE 802.3u 1000BASE-X compliant
  • IEC 61158 and IEC 61784 (PROFINET / TSN) compliant
  • IEC 61000-4-5 (surge immunity) compliant
  • Connector: LC duplex
  • Data rate: 100/1000Mbps
  • Wavelength: 1310nm (single-mode) or 850nm (multi-mode)
  • Operating temperature: -40℃~70℃
  • DC input: 12~57V, industrial power jack
  • Power dissipation < 2.5W
  • Both Single-mode and Multi-mode fiber supported
  • Long distance:
    up to 10km for Single-mode fiber and
    up to 500m for Multi-mode fiber
  • Auto crossing simplifies cabling (MDI/MDIX)
  • Link Fault Pass-Through (LFP) supported
  • Auto dust cover
  • Individual LEDs indicate power and communication status
  • TUV/cTUVus/CE/FCC compliant
  • RoHS and REACH compliant

Applicatoins

  • Connectivity for long distance and immunity to interference with high security
  • Time Sensitive Network
  • Smart Building, Factory Automation, Railway Signaling System and Industrial Internet of Things (IIoT)
  • Industry, Utility, Mining and Enterprise

Ordering Information

Part NumberWavelengthOperating TemperatureDistance
CV4-S1-5150YSingle-Mode 1310nm-40℃ ~ 70℃10km
CV4-M3-5A50YMulti-Mode 850nm-40℃ ~ 70℃500m

** Please feel free to contact info@opto-media.com if any other requirements.
