155M Multi-Mode | SC Connector

155Mbps, Multi-Mode 1310nm, SC, 1x9

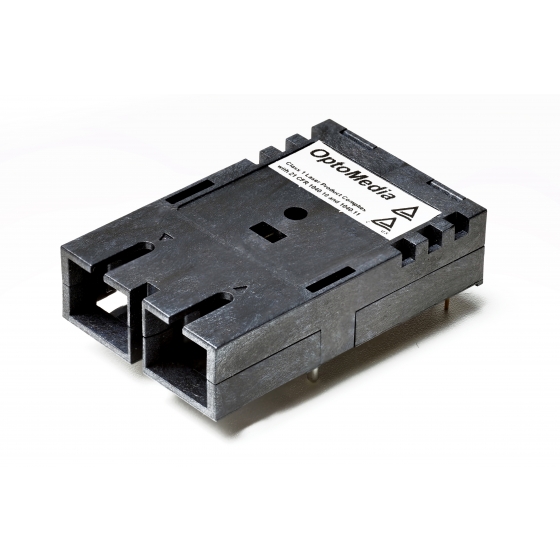

The 1×9 SC duplex 1310nm O-E Transceivers can transmit digital data up to 2 km via Multi-mode optical fiber and the optical performances comply with the Fast Ethernet interface, 155Mbps ATM interface and FDDI PMD Standard.

Overview

Features

Dual Fiber Transceiver
1X9 Footprint plastic package
Connector：SC
TTL/PECL logic interface
Data Rate：155Mbps
Wavelength：Multi-Mode (1310nm)
Distance up to 2km
Operating Temperature：0℃ ~ 70℃ / -40℃ ~ 85℃
+3.3V single power supply
Low EMI
RoHS compliant

Applications

ATM 155 Mbps Links
SONET/SDH Equipment Interconnect
Fast Ethernet 100 Mb/s Links
Comply with Fast Ethernet, OC-3, STM-1 and FDDI Standards

Ordering Information

Part Number	Operating Temperature	Metal Housing	Low Power Dissipation
TR1-M4-2023M-A2	0℃ ~ +70℃	N	N
TR1-M4-2023N-A2	-40℃ ~ +85℃	N	N
TR1-M4-2023M-A5	0℃ ~ +70℃	N	Y
TR1-M4-2023N-A5	-40℃ ~ +85℃	N	Y

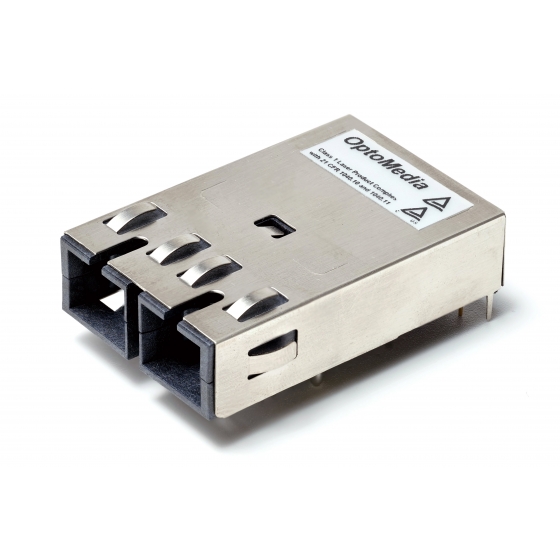

TR1-M4-2023M-W7	0℃ ~ +70℃	Y	N
TR1-M4-2023N-W7	-40℃ ~ +85℃	Y	N
TR1-M4-2023M-W8	0℃ ~ +70℃	Y	Y
TR1-M4-2023N-W8	-40℃ ~ +85℃	Y	Y
