155M Single-Mode | ST Connector

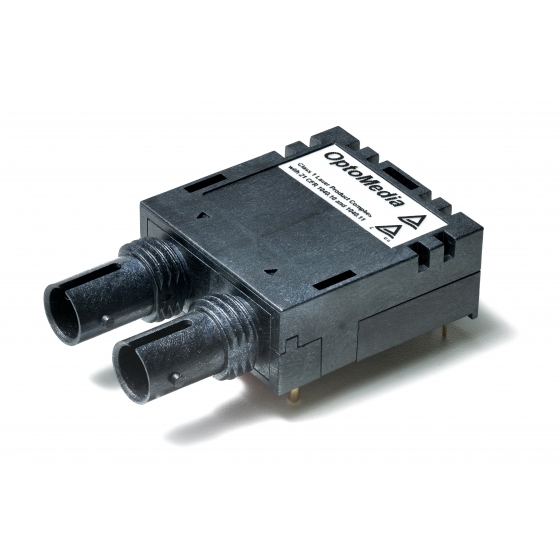

155Mbps, Single-Mode 1310nm, ST, 1x9
The series is high performance module for optical fiber communications by using 1310 nm transmitter and 1310 nm receiver. The transceiver is provided with the ST receptacle that is compatible with the industry standard ST connector. Also, it is a class 1 eye safety product according to International Safety Standard IEC-825. A LVPECL logic interface simplifies interface to external circuitry. Operating temperature is from 0℃ to 70 ℃.
MENU
Overview
The series is high performance module for optical fiber communications by using 1310 nm transmitter and 1310 nm receiver. The transceiver is provided with the ST receptacle that is compatible with the industry standard ST connector. Also, it is a class 1 eye safety product according to International Safety Standard IEC-825. A LVPECL logic interface simplifies interface to external circuitry. Operating temperature is from 0℃ to 70 ℃.
Features
- Dual Fiber Transceiver
- 1X9 Footprint plastic package
- Connector：ST
- TTL/PECL logic interface
- Data Rate：155Mbps
- Wavelength：Single-Mode (1310nm)
- Distance up to 20km
- Operating Temperature：0℃ ~ 70℃
- Single 3.3V power supply
- Low EMI
- RoHS compliant
Applications
- ATM 155Mbps
- SONET/SDH Equipment Interconnect
- Fast Ethernet / Gigabit Ethernet Links
- 802.3ah compliance
Ordering Information
| Part Number | Operating Temperature | Distance |
|---|---|---|
| TR1-S1-3203M | 0℃ ~ 70℃ | 20km |
For any additional requirements, please contact info@opto-media.com.
