10G Multi-Mode Mini-SFF

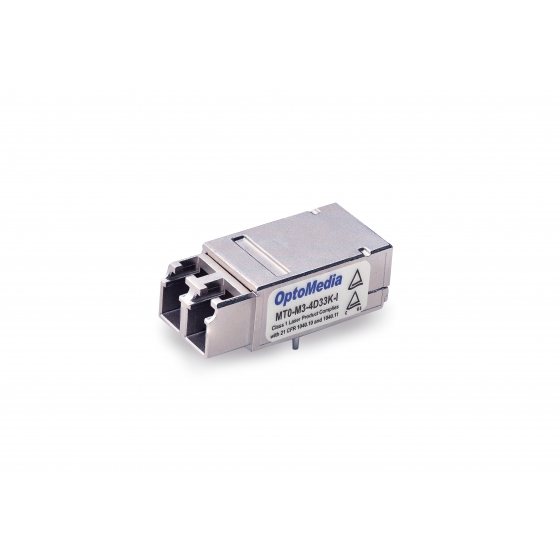

10Gbps, Multi-Mode 850nm, 300m, Mini-SFF
The multi-mode optical transceiver is a 1 x 12 pin mini transceiver with LC connectors. This multi-mode transceiver is low power, high performance module for such as 10Gigabit Ethernet and Fiber Channel communications. The transmitter section uses a VCSEL laser at 850 nm.
Digital diagnostics monitoring information and detailed product information for the host equipment is accessed by the 2-wire serial CMOS EEPROM protocol. It complies with SFF-8472, SFF-8431 and IEEE 802.3ae, Clause 52, 10GBASE-SR.
Digital diagnostics monitoring information and detailed product information for the host equipment is accessed by the 2-wire serial CMOS EEPROM protocol. It complies with SFF-8472, SFF-8431 and IEEE 802.3ae, Clause 52, 10GBASE-SR.
MENU
Overview
The multi-mode optical transceiver is a 1 x 12 pin mini transceiver with LC connectors. This multi-mode transceiver is low power, high performance module for such as 10Gigabit Ethernet and Fiber Channel communications. The transmitter section uses a VCSEL laser at 850 nm.
Digital diagnostics monitoring information and detailed product information for the host equipment is accessed by the 2-wire serial CMOS EEPROM protocol. It complies with SFF-8472, SFF-8431 and IEEE 802.3ae, Clause 52, 10GBASE-SR.
Features
- 1x12 Pin Type
- Duplex LC connector
- Wavelength:850nm
- Transmission distance up to 300m via 50/125μm multi-mode fiber (OM3)
- Operation Temperature:
MT0-M3-4D33K-I:0℃ ~ +70℃
MT0-M3-4D33L-I:-40℃ ~ +85℃
- Single 3.3V power supply
- AC-coupled differential serial I/O interface
- Support A0/A2 write protection
- RoHS Compliant
Applicatoins
- High-speed Storage Area Networks
- Point-to-Point networking
- 10GBase-SR/SW, 10G Ethernet
- Suitable for Industrial or Video Network Interface Cards (NICs), High-Speed Motion Camera, Compact PC, AOI etc.
Ordering Information
Part Number | Operating Temperature | DDM | Distance |
---|---|---|---|
MT0-M3-4D33K-I | 0℃ ~ +70℃ | Y | 300m (OM3) |
MT0-M3-4D33L-I | -40℃ ~ +85℃ | Y | 300m (OM3) |
** Please feel free to contact info@opto-media.com if any other requirements.
