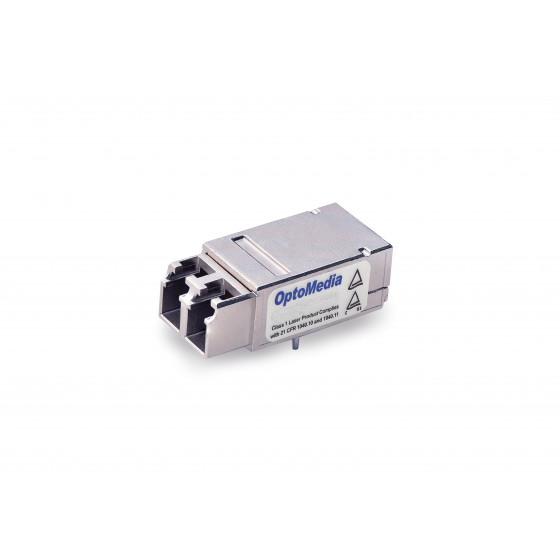

10G Single-Mode Mini-SFF

10Gbps, Sigle-Mode 1310nm, 10km, Mini-SFF
The MT0-S1-4103L-I single-mode optical transceiver is a 1 x 12 pin mini transceiver with LC connectors. This single-mode transceiver is low power, high performance module for such as 10Gigabit Ethernet and Fiber Channel communications. The transmitter section uses a DFB laser at 1310 nm.

Digital diagnostics monitoring information and detailed product information for the host equipment is accessed by the 2-wire serial CMOS EEPROM protocol. It complies with SFF-8472, SFF-8431, SONET/SDH standards, Class 1 laser products.

MENU

Overview

The MT0-S1-4103L-I single-mode optical transceiver is a 1 x 12 pin mini transceiver with LC connectors. This single-mode transceiver is low power, high performance module for such as 10Gigabit Ethernet and Fiber Channel communications. The transmitter section uses a DFB laser at 1310 nm.

Digital diagnostics monitoring information and detailed product information for the host equipment is accessed by the 2-wire serial CMOS EEPROM protocol. It complies with SFF-8472, SFF-8431, SONET/SDH standards, Class 1 laser products.

Features

  • 1x12 Pin Type
  • Duplex LC connector
  • Wavelength: 1310nm
  • 10km link distance
  • Operating Temperature

MT0-S1-4103L-I: -40℃~85℃

  • Single 3.3V power supply
  • Immune to ESD, RF fields, and Vcc noise
  • AC-coupled differential serial I/O interface
  • Support A0/A2 write protection
  • RoHS Compliant

Applicatoins

  • High-speed Storage Area Networks
  • Point-to-Point networking
  • 10GBase-SR/SW, 10G Ethernet
  • Suitable for Industrial or Video Network Interface Cards (NICs), High-Speed Motion Camera, Compact PC, AOI etc.

Ordering Information

Part NumberOperating TemperatureDDMDistance
MT0-S1-4103L-I-40℃ ~ +85℃Y10km

** Please feel free to contact info@opto-media.com if any other requirements.
