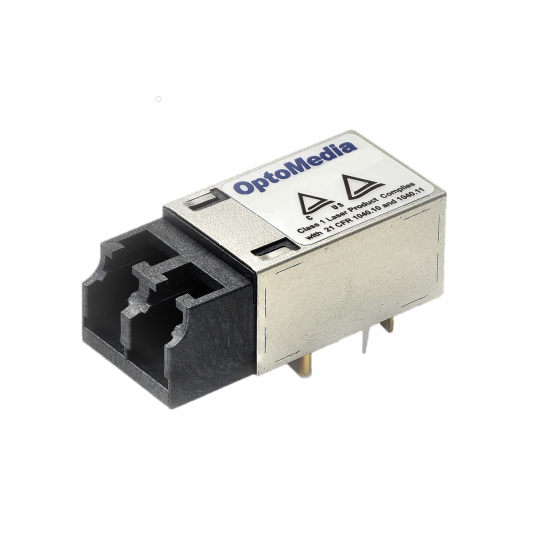

1.25G Multi-Mode Mini-SFF

1.25Gbps, Multi-Mode 850nm, 500m, Mini-SFF
The Multi-mode optical transceiver is 1 x 11 mini transceiver with LC connector. This transceiver is low power, high performance module for such as Gigabit Ethernet and Fiber Channel communications.

This module is designed for multi-mode fiber and operates at a nominal wavelength of 850 nm. The transmitter section uses a Vertical-cavity surface-emitting laser (VCSEL) at 850 nm. This is a class 1 laser compliant according to International Safety Standard IEC-825.

The receiver section uses an integrated GaAs detector preamplifier (IDP) mounted in an optical header and a limiting post-amplifier IC. A LVPECL logic interface simplifies interface to external circuitry. Operating temperature is from -40℃ to 85 ℃.

MENU

Overview

The Multi-mode optical transceiver is 1 x 11 mini transceiver with LC connector. This transceiver is low power, high performance module for such as Gigabit Ethernet and Fiber Channel communications.

This module is designed for multi-mode fiber and operates at a nominal wavelength of 850 nm. The transmitter section uses a Vertical-cavity surface-emitting laser (VCSEL) at 850 nm. This is a class 1 laser compliant according to International Safety Standard IEC-825.

The receiver section uses an integrated GaAs detector preamplifier (IDP) mounted in an optical header and a limiting post-amplifier IC. A LVPECL logic interface simplifies interface to external circuitry. Operating temperature is from -40℃ to 85 ℃.

Features

  • Dual Fiber Transceiver
  • 1 x 11 Pin Package
  • Connector:LC
  • Data Rate:1.25Gbps
  • Wavelength:Multi-Mode (850nm)
  • 3.3V single power supply
  • Distance:500m @ 50/125μm or 220m @ 62.5 / 125μm
  • Operating Temperature:-40℃ ~ 85℃

  • Complies with IEEE 802.3z Gigabit Ethernet
  • LVPECL Differential Inputs and Outputs
  • LVTTL Signal Detection Output
  • Wave Solder able and Aqueous Washable
  • AC/AC Coupled Data Inputs and Outputs
  • Digital Diagnostic SFF 8472 Compliant
  • RoHS compliant

Applicatoins

  • Gigabit Ethernet
  • SONET/SDH Equipment Interconnect
  • Fiber Channel
  • Suitable for Industrial network interface cards (NICs), Compact PC, Industrial camera, Cube camera, AOI, Robot etc.

Ordering Information

Part NumberOperating TemperatureDDMDistance
MT4-M3-4D53L-I-40℃ ~ 85℃Yup to 500m

** Please feel free to contact info@opto-media.com if any other requirements.
