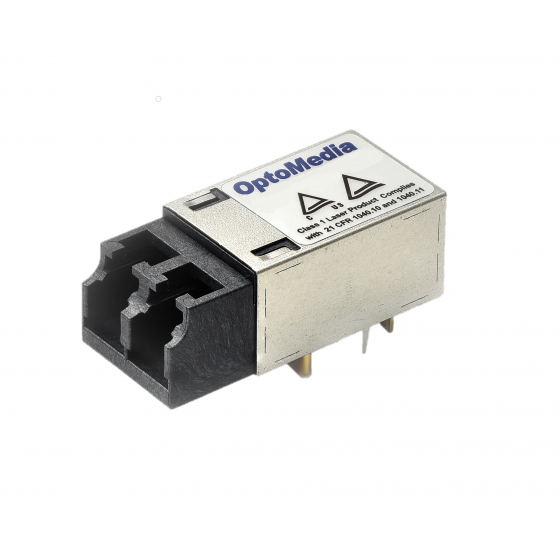

1.25G Single-Mode Mini-SFF

1.25Gbps, Single-Mode 1310nm, 10km, Mini-SFF

The Single-mode optical transceiver is 1 x 11 mini transceiver with LC connector. This transceiver is low power, high performance module for such as Gigabit Ethernet and Fiber Channel communications.

The transmitter section uses a Fabry-Perot laser (FP) at 1310 nm. An EEPROM contained the detailed product information for the host equipment is accessed by the 2-wire serial CMOS EEPROM protocol. It complies with Gigabit Ethernet, SONET/SDH standards, Class 1 laser products, and EN/UL 62368.

Overview

The Single-mode optical transceiver is 1 x 11 mini transceiver with LC connector. This transceiver is low power, high performance module for such as Gigabit Ethernet and Fiber Channel communications.

The transmitter section uses a Fabry-Perot laser (FP) at 1310 nm. An EEPROM contained the detailed product information for the host equipment is accessed by the 2-wire serial CMOS EEPROM protocol. It complies with Gigabit Ethernet, SONET/SDH standards, Class 1 laser products, and EN/UL 62368.

Features

Duplex LC Single-mode Transceiver
1x11 Mini-SFF Packaging
1310nm uncooled FP LD
10Km link distance
Operating Temperature: -40℃ ~ +95℃
Single 3.3V power supply
Support A0/A2 write protection
RoHS Compliant

Applicatoins

Point-to-Point networking
1G fiber channel
Fast Ethernet/Gigabit Ethernet
Suitable for Industrial network interface cards (NICs), Compact PC, Industrial camera, Cube camera, AOI, Robot etc.
