155M Multi-Mode Mini-SFF
155Mbps, Multi-Mode 1310nm, 2km, Mini-SFF

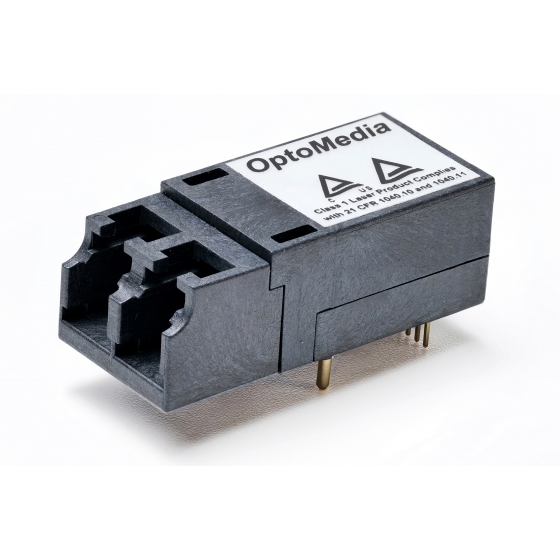

The MT1-M4-4023x Multi-mode optical transceiver is 1 x 11 mini transceiver with LC connector. This Multi-mode transceiver is low power, high performance module for such as Gigabit Ethernet and Fiber Channel communications.
The transmitter section uses a Fabry-Perot laser (FP) at 1310 nm. An EEPROM contained the detailed product information for the host equipment is accessed by the 2-wire serial CMOS EEPROM protocol.
The transmitter section uses a Fabry-Perot laser (FP) at 1310 nm. An EEPROM contained the detailed product information for the host equipment is accessed by the 2-wire serial CMOS EEPROM protocol.
MENU
Overview
The MT1-M4-4023x Multi-mode optical transceiver is 1 x 11 mini transceiver with LC connector. This Multi-mode transceiver is low power, high performance module for such as Gigabit Ethernet and Fiber Channel communications.
The transmitter section uses a Fabry-Perot laser (FP) at 1310 nm. An EEPROM contained the detailed product information for the host equipment is accessed by the 2-wire serial CMOS EEPROM protocol.
Features
- Duplex LC Multi-mode Transceiver
- 1x11 Mini-SFF Packaging
- 1310nm uncooled FP LD
- Distance up to 2km
- Operating Temperature: -40℃~85℃ or -40℃~95℃
- Single 3.3V power supply
- Support A0/A2 write protection
- RoHS Compliant
Applicatoins
- Point-to-Point networking
- Fast Ethernet 100 Mb/s Links
- Comply with Fast Ethernet, OC-3, STM-1 and FDDI Standards
- Suitable for Industrial network interface cards (NICs), Compact PC, Industrial camera, Cube camera, Industrial IOT, Robot etc.
Ordering Information
Part Number | Operating Temperature | DDM | Distance |
---|---|---|---|
MT1-M4-4023L | -40℃ ~ 85℃ | Y | up to 2km |
MT1-M4-4023S | -40℃ ~ 95℃ | Y | up to 2km |
** Please feel free to contact info@opto-media.com if any other requirements.
