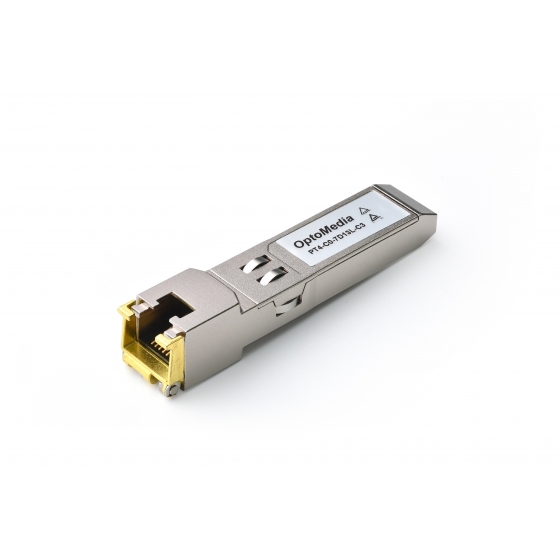

1G Copper SFP with SyncE and PTP
These 1000BASE-T copper small form-factor pluggable transceivers (SFPs) are based on the SFP multi source agreement (MSA) except SyncE features.
They also support RX_LOS pin for link indication, and DDM (Temperature and Voltage) for monitoring module via I2C. The transceivers are RoHS compliant and the transmission distance at 1Gbps is up to 100m.
Precision Time Protocol (PTP) Time Stamping is a future-Proof technology in Telecom, Professional Audio/Visual, Industry and Automotive sector.
MENU
Overview
The PT4-C0-7D13L-C31 supports SGMII with 10/100/1000 Mbps, and Synchronous Ethernet (SyncE) and Precision Time Protocol (PTP) Time Stamping, which is based on IEEE 802.1AS and IEEE 1588 version 2.
These 1000BASE-T copper small form-factor pluggable transceivers (SFPs) are based on the SFP multi source agreement (MSA) except SyncE features.
They also support RX_LOS pin for link indication, and DDM (Temperature and Voltage) for monitoring module via I2C. The transceivers are RoHS compliant and the transmission distance at 1Gbps is up to 100m.
Precision Time Protocol (PTP) Time Stamping is a future-Proof technology in Telecom, Professional Audio/Visual, Industry and Automotive sector.
Features
- 10/100/1000BASE-T IEEE 802.3 compliant
- Support Energy Efficient Ethernet (EEE)-IEEE 802.3az-2010 compliant and Green Ethernet
- Support Synchronous Ethernet (SyncE) and IEEE802.1AS
- Compact RJ45 connector assembly
- Operating case temperature: -40°C to +85°C
- Low Power Dissipation
- Metal enclosure, low EMI
- Access to Physical Layer IC via 2-wire Serial Bus
- LOS connect to PHY
Applicatoins
- Synchronous Ethernet (SyncE) clock recovery
- Precision Time Protocol (PTP) Time Stamping based on IEEE802.1AS
- 10/100/1000Mbps Ethernet over copper
- Distributed multi-processing
- High speed I/O for file server or high-end workstation
- Switch/Router to Switch/Router Link
Ordering Information
Part Number | Operating Temperature | MAC Interface | SyncE and PTP | Hi-Pot Isolation |
---|---|---|---|---|
PT4-C0-7D13L-C31 | -40℃ ~ 85℃ | SGMII | IEEE 802.1AS and IEEE1588 v2 support | Y |
** Please feel free to contact info@opto-media.com if any other requirements.
