1.25G Multi-Mode SC SFP
1.25Gbps, Multi-Mode 850nm, 550m, SC

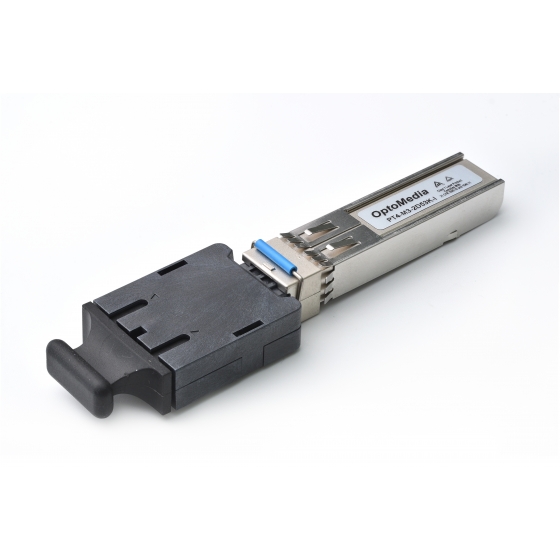

The PT4-M3-2D53K-I of Small Form Factor Pluggable (SFP) transceiver module is specifically designed for high performance integrated duplex data link over multi-mode optical fiber. The high-speed VCSEL laser diode and photo diode are provided as a light source and a detector, respectively. An EEPROM contained the detailed product information for the host equipment is accessed by the 2-wire serial CMOS EEPROM protocol. It complies with SONET/SDH standards, Class 1 laser products, EN60825, and EN62368. It supports SFP hot plug function.
MENU
Overview
The PT4-M3-2D53K-I of Small Form Factor Pluggable (SFP) transceiver module is specifically designed for high performance integrated duplex data link over multi-mode optical fiber. The high-speed VCSEL laser diode and photo diode are provided as a light source and a detector, respectively. An EEPROM contained the detailed product information for the host equipment is accessed by the 2-wire serial CMOS EEPROM protocol. It complies with SONET/SDH standards, Class 1 laser products, EN60825, and EN62368. It supports SFP hot plug function.
Features
- Complies with IEEE 802.3z Gigabit Ethernet
- Duplex SC Multi-mode Transceiver
- 850nm VCSEL
- Transmission Distance: 50/125µm to 500m or 62.5/125µm to 220m
- Operating Temperature:0℃ ~ 70℃
- Single +3.3V Power Supply
- AC/AC CoupledData Inputs and Outputs
- Optional Digital Diagnostic Function
- RoHS compliant
Applicatoins
- Gigabit Ethernet
- Suitable for Fast Ethernet and OC-12
- Fiber Channel
Ordering Information
** Please feel free to contact info@opto-media.com if any other requirements.
