155M Multi-Mode SC SFP

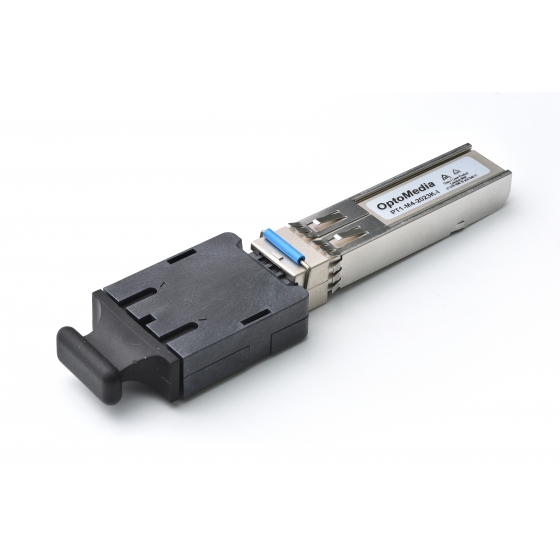

155Mbps, Multi-Mode 1310nm, 2km, SC SFP
The PT1-M4-2023K-I of Small Form Factor Pluggable (SFP) transceiver module is specifically designed for high performance integrated duplex data link over multi-mode optical fiber. The high-speed VCSEL laser diode and photo diode are provided as a light source and a detector, respectively. An EEPROM contained the detailed product information for the host equipment is accessed by the 2-wire serial CMOS EEPROM protocol. It complies with SFP MSA, SONET/SDH standards, Class 1 laser products, EN60825, and EN62368. It supports SFP hot plug function.
MENU
Overview
The PT1-M4-2023K-I of Small Form Factor Pluggable (SFP) transceiver module is specifically designed for high performance integrated duplex data link over multi-mode optical fiber. The high-speed VCSEL laser diode and photo diode are provided as a light source and a detector, respectively. An EEPROM contained the detailed product information for the host equipment is accessed by the 2-wire serial CMOS EEPROM protocol. It complies with SFP MSA, SONET/SDH standards, Class 1 laser products, EN60825, and EN62368. It supports SFP hot plug function.
Features
- Duplex SC Multi-mode Transceiver
- 1310nm FP laser
- Transmission Distance: up to 2km (indicative only)
- Operation Case Temperature：0℃ ~ 70℃
- Single +3.3V Power Supply
- Optional Digital Diagnostic Function
- RoHS compliant
Applications
- Point-to-Point networking
- SONET/SDH Equipment Interconnect
- Comply with Fast Ethernet, OC-3, STM-1 and FDDI Standard
- Multi-mode transmission
Ordering Information
| Part Number | Operating Temperature | Distance |
|---|---|---|
| PT1-M4-2023K-I | 0℃ ~ 70℃ | up to 2km |
For any additional requirements, please contact info@opto-media.com.
