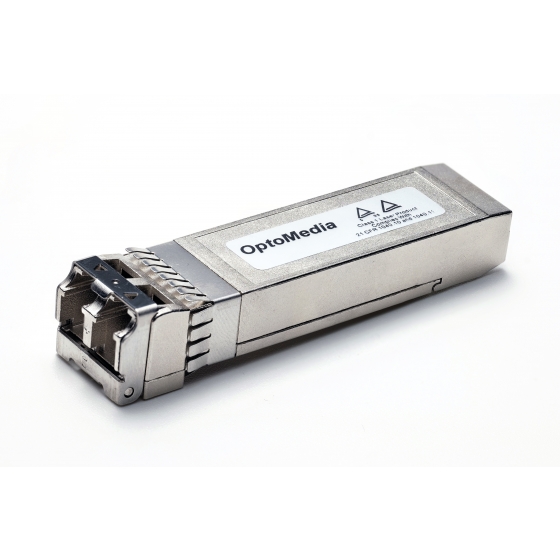

PT4-M4-4023x 外殼E_白底
PT4-M4-4023x 外殼E_白底

1.25G Multi-Mode 850nm

1.25Gbps, Multi-Mode 850nm, 500m
The PT4-M3-4D53x-I of Small Form Factor Pluggable (SFP) transceiver module is specifically designed for high performance integrated duplex data link over multi mode optical fiber. The high-speed oxide VCSEL and photo diode are provided as a light source and a detector, respectively. An EEPROM contained the detailed product information for the host equipment is accessed by the 2-wire serial CMOS EEPROM protocol.

MENU

Overview

The PT4-M3-4D53x-I of Small Form Factor Pluggable (SFP) transceiver module is specifically designed for high performance integrated duplex data link over multi mode optical fiber. The high-speed oxide VCSEL and photo diode are provided as a light source and a detector, respectively. An EEPROM contained the detailed product information for the host equipment is accessed by the 2-wire serial CMOS EEPROM protocol.

Features

  • Dual Fiber Transceiver
  • Small Form Factor Pluggable (SFP)
  • Connector:LC
  • Data Rate:1.25Gbps
  • Wavelength:Multi-Mode (850nm)
  • 3.3V single power supply
  • Distance up to 500m via 50/125 µm MMF
  • Operating Temperature:0℃ ~ 70℃ or -40℃ ~ 85℃
  • Low EMI
  • Low Power Dissipation
  • Digital Diagnostic SFF 8472 Compliant
  • RoHS compliant

Applicatoins

  • Metro Access Rings
  • Point-to-Point networking
  • 1G Fiber Channel
  • Gigabit Ethernet
  • Suitable for Fast Ethernet and OC-12

Ordering Information

Part NumberOperating Temperature
PT4-M3-4D53K-I0℃ ~ 70℃
PT4-M3-4D53L-I-40℃ ~ 85℃

** Please feel free to contact info@opto-media.com if any other requirements.
