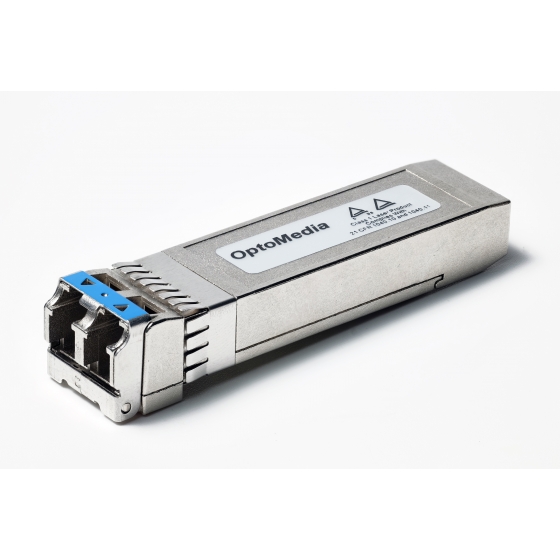

PT0-S1-4103x-I 外殼E_白底
PT0-S1-4103x-I 外殼E_白底

1.25G Single-Mode

1.25Gbps, Single-Mode 1310nm, 10km
The PT4-S1-4103x-I of Small Form Factor Pluggable (SFP) transceiver module is specifically designed for high performance integrated duplex data link over single mode optical fiber. The high-speed laser diode and photo diode are provided as a light source and a detector, respectively. An EEPROM contained the detailed product information for the host equipment is accessed by the 2-wire serial CMOS EEPROM protocol.

MENU

Overview

The PT4-S1-4103x-I of Small Form Factor Pluggable (SFP) transceiver module is specifically designed for high performance integrated duplex data link over single mode optical fiber. The high-speed laser diode and photo diode are provided as a light source and a detector, respectively. An EEPROM contained the detailed product information for the host equipment is accessed by the 2-wire serial CMOS EEPROM protocol.

Features

  • Dual Fiber Transceiver
  • Small Form Factor Pluggable (SFP or SFP+)
  • Connector:LC
  • Data Rate:1.25Gbps
  • Wavelength:Single-Mode (1310nm)
  • 3.3V single power supply
  • Distance up to 10km
  • Operating Temperature:0℃ ~ 70℃ or -40℃ ~ 85℃ or  -40℃ ~ 95℃
  • Low EMI
  • Low Power Dissipation
  • Digital Diagnostic SFF 8472 Compliant
  • RoHS compliant

Applicatoins

  • Metro Access Rings
  • Point-to-Point networking
  • 1G fiber channel
  • Gigabit Ethernet
  • Suitable for Fast Ethernet and OC-12
  • Single mode transmission

Ordering Information

Part NumberOperating TemperatureHousing
PT4-S1-4103L-I-40℃ ~ 85℃SFP
PT4-S1-4103S-I-40℃ ~ 95℃SFP+

** Please feel free to contact info@opto-media.com if any other requirements.
