155M Multi-Mode
155Mbps, Multi-Mode 1310nm, 2km

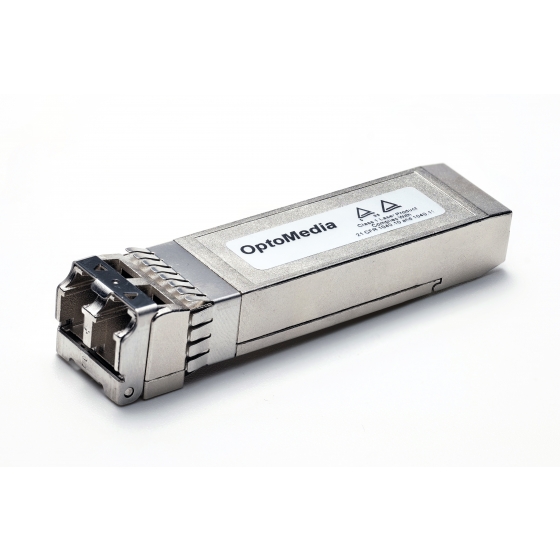

The PT1-M4-4023x of Small Form Factor Pluggable (SFP) transceiver module is specifically designed for high performance integrated duplex data link over multi-mode optical fiber. The high-speed laser diode and photo diode are provided as a light source and a detector, respectively. An EEPROM contained the detailed product information for the host equipment is accessed by the 2-wire serial CMOS EEPROM protocol.
MENU
Overview
The PT1-M4-4023x of Small Form Factor Pluggable (SFP) transceiver module is specifically designed for high performance integrated duplex data link over multi-mode optical fiber. The high-speed laser diode and photo diode are provided as a light source and a detector, respectively. An EEPROM contained the detailed product information for the host equipment is accessed by the 2-wire serial CMOS EEPROM protocol.
Features
- Dual Fiber Transceiver
- Small Form Factor Pluggable (SFP)
- Connector:LC
- Data Rate:155Mbps
- Wavelength:Multi-Mode (1310nm)
- Distance: up to 2km (indicative only)
- +3.3V single power supply
- Operating Temperature:-40℃ ~ +85℃
- Metal enclosure, Low EMI
- Low Power Dissipation
- LETTL Differential Data Inputs and Outputs
- Digital Diagnostic SFF 8472 Compliant
- RoHS compliant
Applicatoins
- Point-to-Point networking
- SONET/SDH Equipment Interconnect
- Comply with Fast Ethernet, OC-3, STM-1 and FDDI Standard
- Multi-mode transmission
Ordering Information
Part Number | Operating Temperature | DDM | YDistance |
---|---|---|---|
PT1-M4-4023L | -40℃ ~ +85℃ | Y | Up to 2km |
PT1-M4-4023S | -40℃ ~ +95℃ | Y | Up to 2km |
** Please feel free to contact info@opto-media.com if any other requirements.
