155M Single-Mode

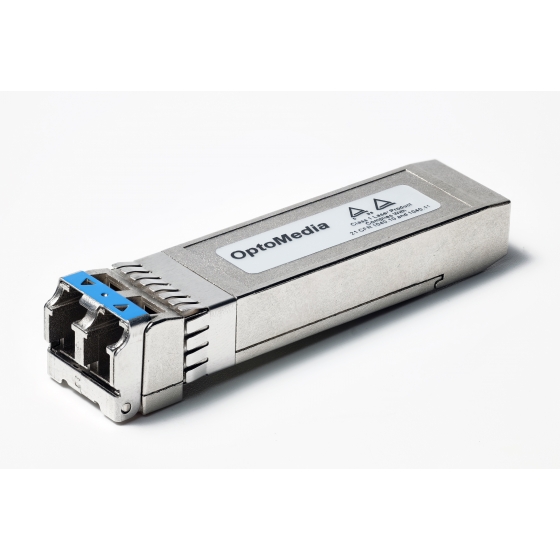

155Mbps, Single-Mode 1310nm, 20km
The PT1-S1-4203x of Small Form Factor Pluggable (SFP) transceiver module is specifically designed for high performance integrated duplex data link over single mode optical fiber. The high-speed laser diode and photo diode are provided as a light source and a detector, respectively. An EEPROM contained the detailed product information for the host equipment is accessed by the 2-wire serial CMOS EEPROM protocol. It complies with SFP MSA, SONET/SDH standards, Class 1 laser products, EN60825, and EN60950.
MENU
Overview
The PT1-S1-4203x of Small Form Factor Pluggable (SFP) transceiver module is specifically designed for high performance integrated duplex data link over single mode optical fiber. The high-speed laser diode and photo diode are provided as a light source and a detector, respectively. An EEPROM contained the detailed product information for the host equipment is accessed by the 2-wire serial CMOS EEPROM protocol. It complies with SFP MSA, SONET/SDH standards, Class 1 laser products, EN60825, and EN60950.
Features
- Dual Fiber Transceiver
- Small Form Factor Pluggable (SFP)
- Connector：LC
- Data Rate：155Mbps
- Wavelength：Single-Mode (1310nm)
- Distance: up to 20km (indicative only)
- +3.3V single power supply
- Operating Temperature：-40℃ ~ +85℃, -40℃ ~ +95℃
- Metal enclosure, Low EMI
- Low Power Dissipation
- Digital Diagnostic SFF 8472 Compliant
- RoHS compliant
Applicatoins
- Metro Access Rings
- Point-to-Point networking
- OC-3
- Suitable for Fast Ethernet
Ordering Information
| Part Number | Operating Temperature | DDM | Distance |
|---|---|---|---|
| PT1-S1-4203L | -40℃ ~ 85℃ | Y | Up to 20km |
| PT1-S1-4203S | -40℃ ~ 95℃ | Y | Up to 20km |
** Please feel free to contact info@opto-media.com if any other requirements.
