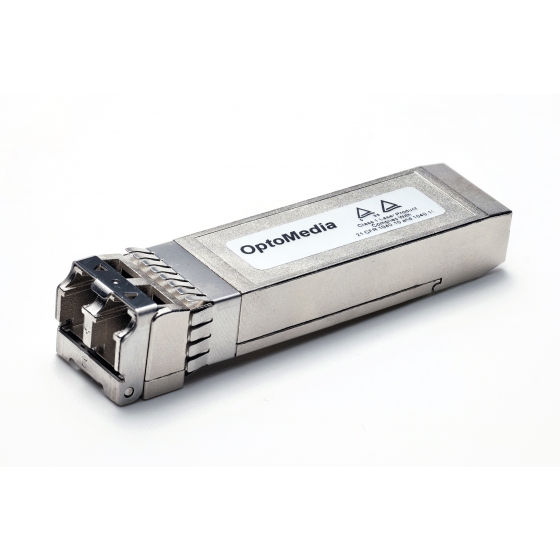

10G-SR

10Gbps, Multi-Mode 850nm, 300m, SFP+
The PT0-M3-4D33x-C5 of the Enhanced Small Form Factor Pluggable (SFP+) transceiver module is designed for high performance integrated data link over dual multi-mode optical fibers. The high-speed laser diode and photodiode are provided as a light source and a detector, respectively. Digital diagnostics monitoring information and detailed product information for the host equipment is accessed by the 2-wire serial CMOS EEPROM protocol. It complies with SFF 8472, SFF 8431 and IEEE 802.3ae 10GBASE-SR.

MENU

Overview

The PT0-M3-4D33x-C5 of the Enhanced Small Form Factor Pluggable (SFP+) transceiver module is designed for high performance integrated data link over dual multi-mode optical fibers. The high-speed laser diode and photodiode are provided as a light source and a detector, respectively. Digital diagnostics monitoring information and detailed product information for the host equipment is accessed by the 2-wire serial CMOS EEPROM protocol. It complies with SFF 8472, SFF 8431 and IEEE 802.3ae 10GBASE-SR.



Features

  • Dual Fiber Transceiver
  • Connector:Duplex LC
  • Data Rate:10Gbps
  • Wavelength:Multi-Mode (850nm)
  • Distance up to 300m
  • Operating Temperature:0℃ ~ 70℃ / -40℃ ~ 85℃
  • +3.3V single power supply
  • Digital Diagnostic SFF-8472 compliant
  • Metal enclosure
  • Low EMI
  • RoHS compliant

Applicatoins

  • 10GBase-SR/SW, 10G Ethernet

Ordering Information

Part NumberOperating Temperature
PT0-M3-4D33K-C50℃ ~ 70℃
PT0-M3-4D33L-C5-40℃ ~ 85℃

For any additional requirements, please feel free to contact info@opto-media.com.
