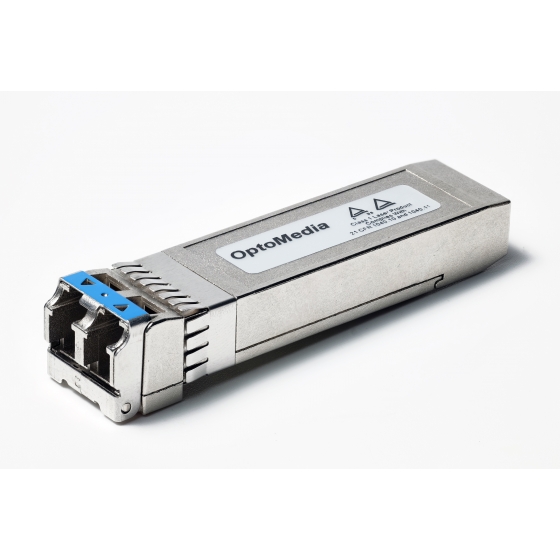

PT0-S1-4103x-I 外殼E_白底
PT0-S1-4103x-I 外殼E_白底

10G-LR

10Gbps, Single-Mode 1310nm, 10km, SFP+
The PT0-S1-4103x-I of Enhanced Small Form Factor Pluggable (SFP+) transceiver module is specifically designed for high performance integrated data link over single mode optical fiber. The high-speed laserdiode and photodiode are provided as a light source and a detector, respectively. Digital diagnostics monitoring information and detailed product information for the host equipment is accessed by the 2-wire serial CMOS EEPROM protocol.

MENU

Overview

The PT0-S1-4103x-I of Enhanced Small Form Factor Pluggable (SFP+) transceiver module is specifically designed for high performance integrated data link over single mode optical fiber. The high-speed laserdiode and photodiode are provided as a light source and a detector, respectively. Digital diagnostics monitoring information and detailed product information for the host equipment is accessed by the 2-wire serial CMOS EEPROM protocol.

Features

  • Dual Fiber Transceiver
  • Connector:Duplex LC
  • Data Rate:10Gbps
  • Wavelength:Single-Mode (1310nm)
  • Distance up to 10km
  • Operating Temperature:0℃ ~ 70℃ / -40℃ ~ 85℃ / -40℃ ~ 95℃
  • Single 3.3V power supply
  • Digital Diagnostic SFF-8472 compliant
  • Metal enclosure
  • Low EMI
  • RoHS compliant


Applicatoins

  • High-speed Storage Area Networks
  • Point-to-Point networking
  • 10GBASE-LR/LW 10G Ethernet

Ordering Information

Part NumberDigital DiagnosticOperating Temperature
PT0-S1-4103K-INo0℃ ~ 70℃
PT0-S1-4103L-IYes-40℃ ~ 85℃
PT0-S1-4103S-IYes-40℃ ~ 95℃

For any additional requirements, please feel free to contact info@opto-media.com.
