#10_PT0-S2-4403L-I
#10_PT0-S2-4403L-I

10G-ER

10Gbps, Single-Mode 1550nm, 40km, SFP+

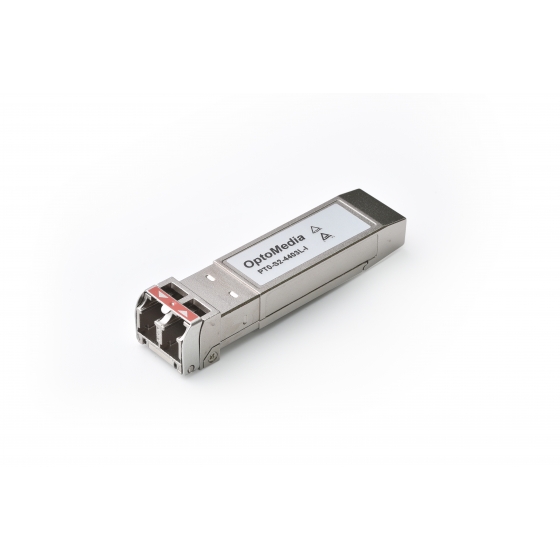

The PT0-S2-4403L-I of Enhanced Small Form Factor Pluggable (SFP+) transceiver module is specifically designed for high performance integrated data link over single mode optical fiber. The high-speed laserdiode and photodiode are provided as a light source and a detector, respectively. Digital diagnostics monitoring information and detailed product information for the host equipment is accessed by the 2-wire serial interface. It complies with SFF-8472, SFF-8431, SFF-8432, 10GFC, Class 1 laser products, and IEEE802.3ae 10GBASE-ER/EW.

MENU

Overview

The PT0-S2-4403L-I of Enhanced Small Form Factor Pluggable (SFP+) transceiver module is specifically designed for high performance integrated data link over single mode optical fiber. The high-speed laserdiode and photodiode are provided as a light source and a detector, respectively. Digital diagnostics monitoring information and detailed product information for the host equipment is accessed by the 2-wire serial interface. It complies with SFF-8472, SFF-8431, SFF-8432, 10GFC, Class 1 laser products, and IEEE802.3ae 10GBASE-ER/EW.



Features

  • Dual Fiber Transceiver
  • Connector:Duplex LC
  • Data Rate:10Gbps
  • Wavelength:Single-Mode (1550nm)
  • Distance up to 40km
  • Operating Temperature:-40℃ ~ 85℃
  • +3.3V single power supply
  • Digital Diagnostic SFF-8472 compliant
  • Metal enclosure
  • Low EMI
  • RoHS compliant

Applicatoins

  • High-speed Storage Area Networks
  • Point-to-Point networking
  • 10GBASE-ER/EW 10G Ethernet
  • 10G fiber channel

Ordering Information

Part NumberOperating Temperature
PT0-S2-4403L-I-40℃ ~ 85℃

For any additional requirements, please feel free to contact info@opto-media.com.
